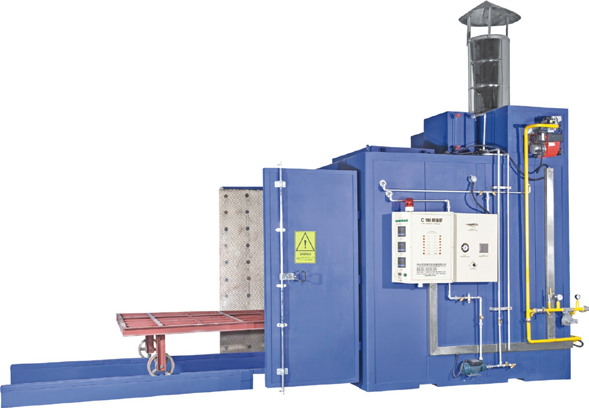

Burn Off Oven

Our industrial burn off oven is a high-efficiency, eco-friendly thermal cleaning solution designed for removing organic contaminants from metal parts, fixtures, racks, jigs, and tooling. Utilizing advanced pyrolysis technology, it safely strips paint, powder coating, grease, plastic residues, rubber, and other organic materials without damaging the base metal, making it an essential equipment for manufacturing, coating, automotive, aerospace, and plastic processing industries.

Core Working Principle

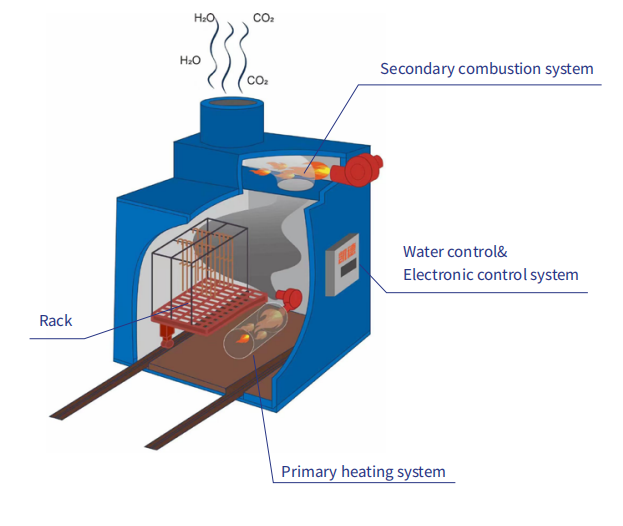

The burn off oven operates through a controlled pyrolysis process:

1. Heating Stage: The oven chamber is heated to 400–500°C (752–932°F) in a low-oxygen environment, preventing open flame combustion.

2. Pyrolysis Stage: Organic contaminants are decomposed into volatile gases and solid carbon residue.

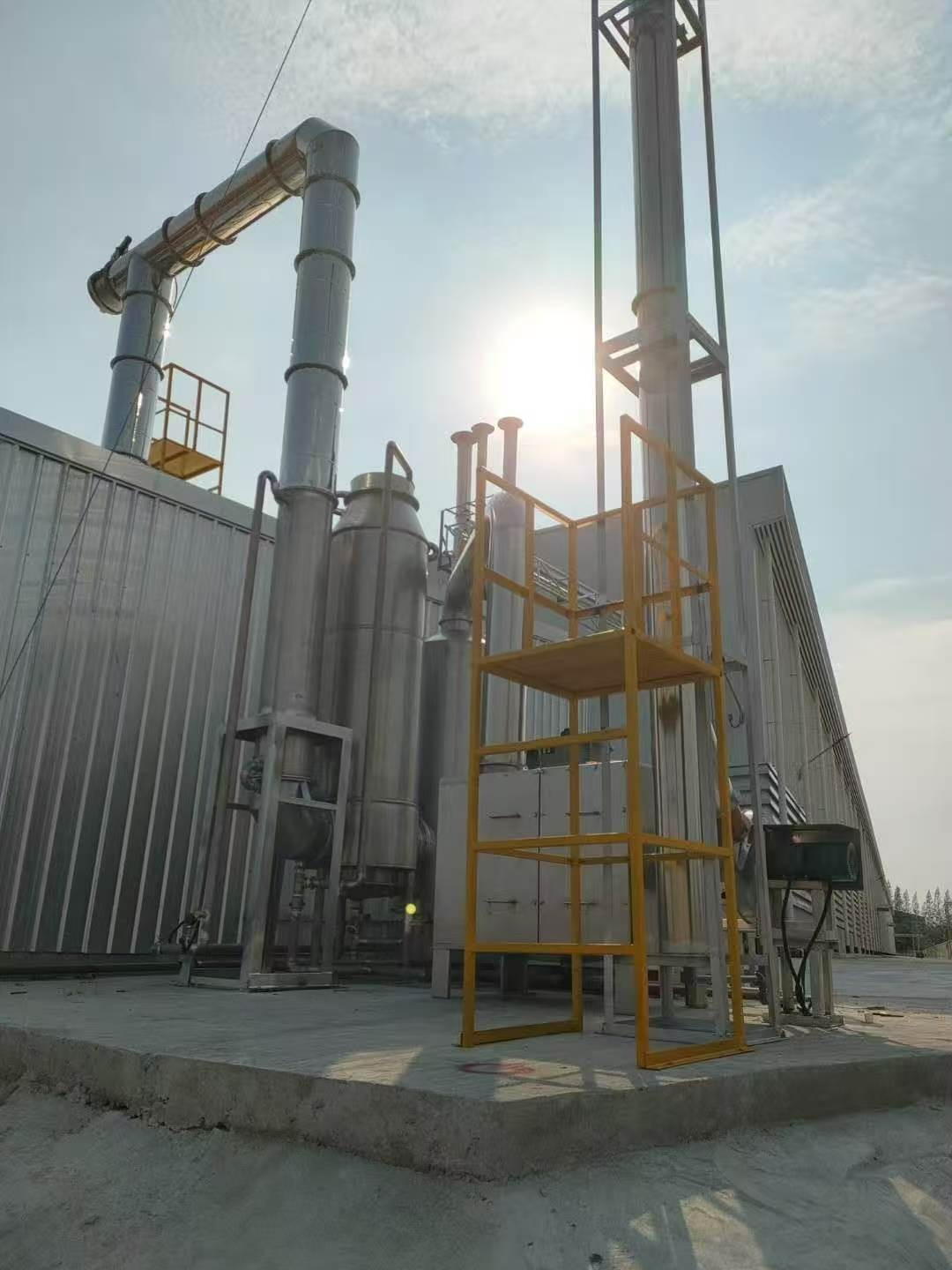

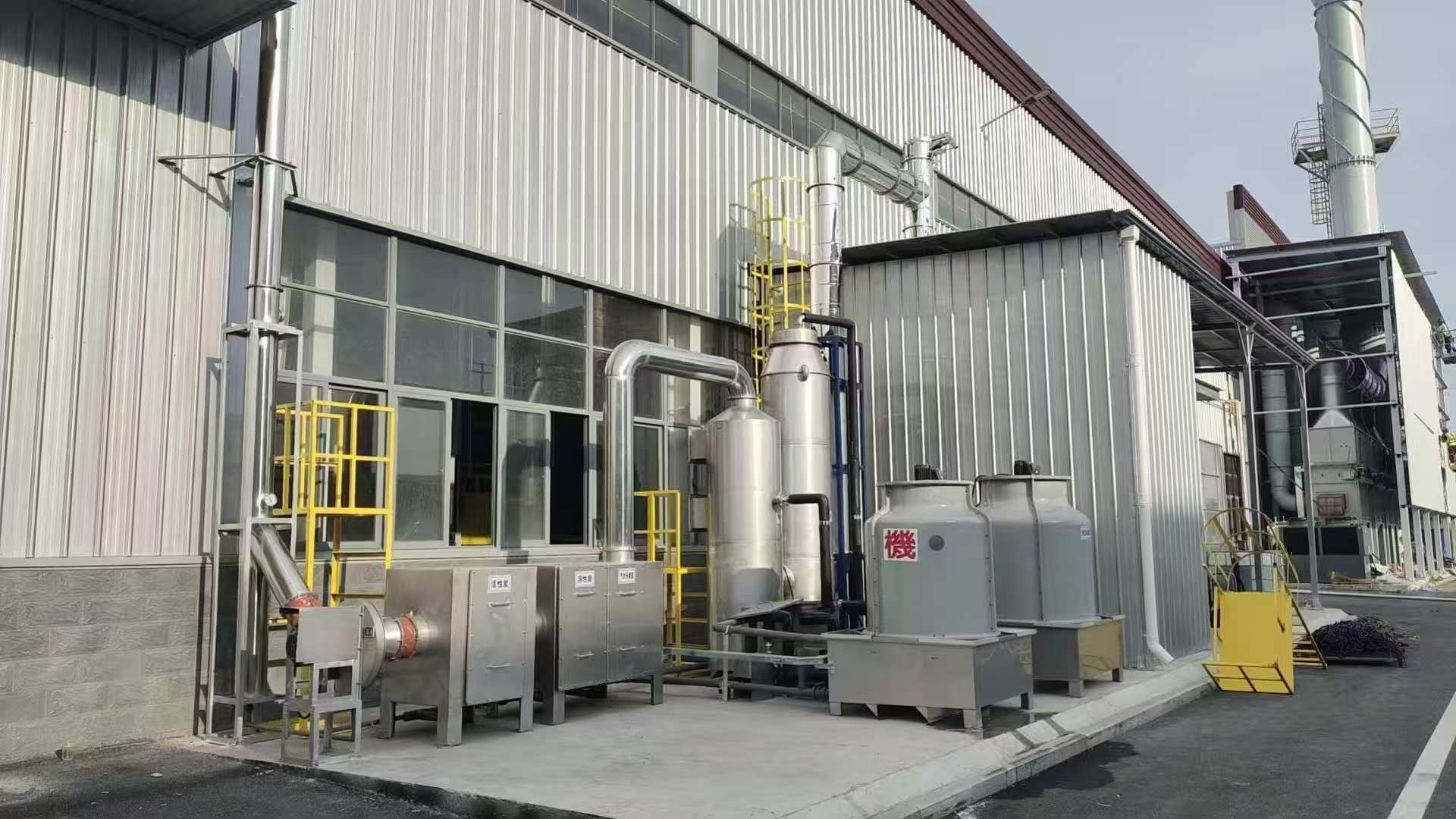

3. Afterburner Treatment: Volatile gases are sent to a secondary afterburner chamber, heated to 800–900°C (1472–1652°F) for complete oxidation, eliminating harmful emissions and meeting strict environmental standards.

4. Cooling & Cleaning: The cleaned metal parts cool down in the chamber, and solid residue is easily removed from the furnace bottom.

Application Industries

• Coating & Surface Treatment: Cleaning of hanging racks, fixtures, jigs, and spray guns in powder coating, painting, and electroplating workshops.

• Automotive & Aerospace: Removal of paint, sealant, and grease from auto parts, engine components, and aircraft structural parts.

• Plastic & Rubber Industry: Cleaning of extrusion dies, injection molds, and calender rolls to remove plastic/rubber residues.

• Foundry & Forging: Removal of sand, oil, and scale from castings and forgings.

• Other Industries: Food processing equipment cleaning, heat exchanger maintenance, and mold cleaning in various manufacturing sectors.

Key Product Features

✅ High Cleaning Efficiency: 99% removal rate for paint, powder coating, grease, plastic, and other organic contaminants, no manual polishing required.

✅ Non-Destructive Cleaning: Low-oxygen pyrolysis avoids oxidation and deformation of metal workpieces, extending the service life of fixtures and racks.

✅ Eco-Friendly & Energy-Saving: Equipped with a high-efficiency afterburner system, emissions meet EU CE, US EPA, and ISO 14001 standards; heat recovery design reduces energy consumption by 30% compared to traditional cleaning methods.

✅ Intelligent Control System: PLC + HMI touch screen control, with automatic temperature adjustment, over-temperature protection, and fault alarm functions, supporting customized cleaning programs for different workpieces.

✅ Robust & Durable Structure: High-quality refractory insulation materials, thickened steel plate body, and corrosion-resistant pipeline system, suitable for 24/7 continuous industrial operation.

✅ Customizable Design: Available in batch-type, trolley-type, and continuous-type configurations; chamber size, temperature range, and loading capacity can be customized according to production needs.
